Composite Side Gate | Side Gates | CSG19
Original price was: £427.06.£300.00Current price is: £300.00.+ Price depends upon Sizes

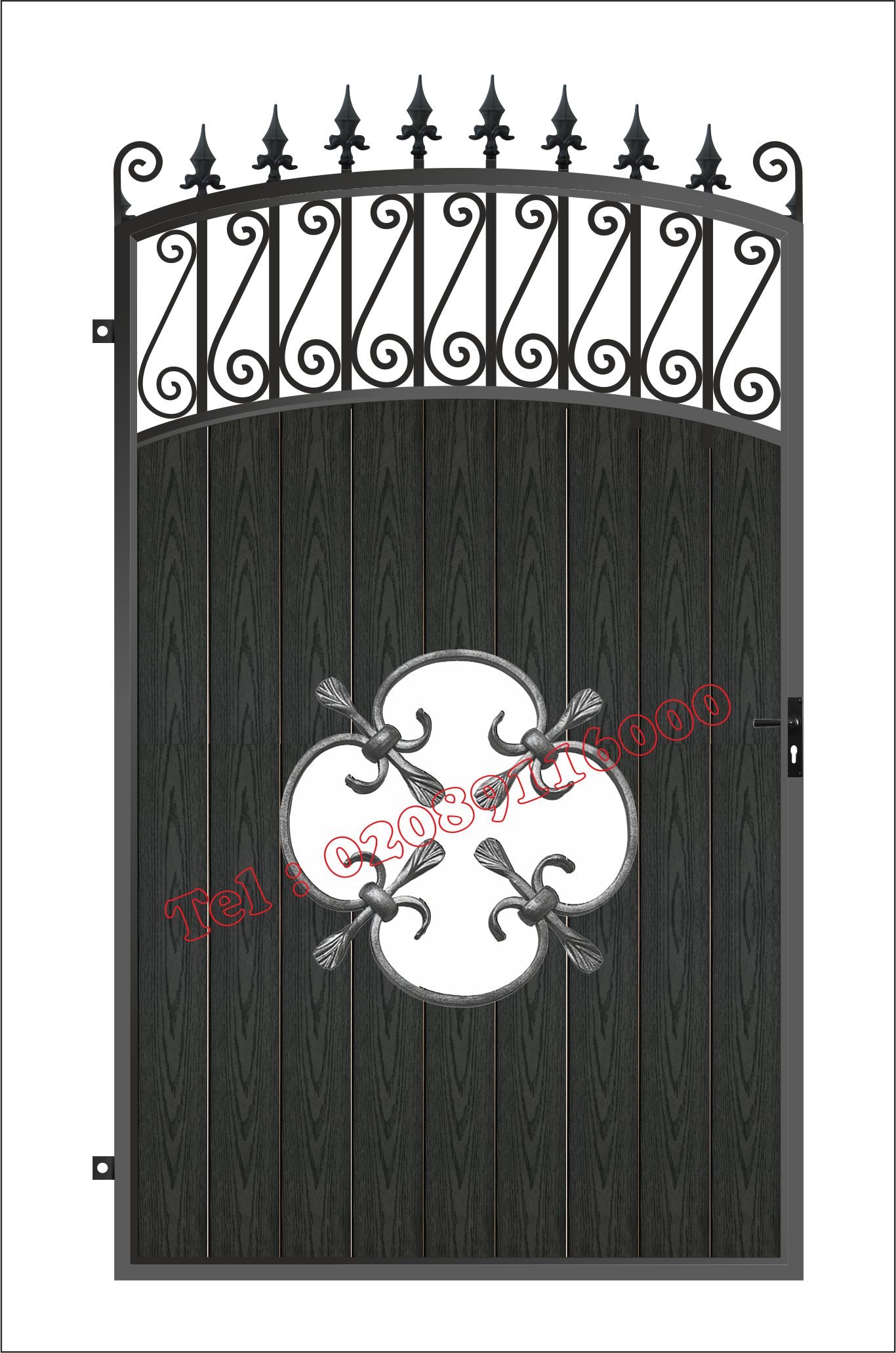

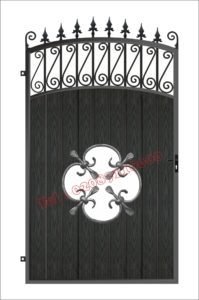

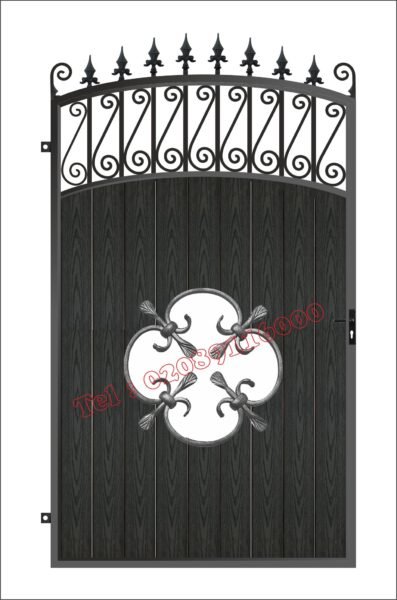

This composite side gate design combines dark woodgrain vertical slats with an arched wrought iron-style scrollwork top, featuring ornate finials and a decorative quatrefoil medallion. The layout pairs a solid, private lower panel with an open, decorative upper section for a striking blend of security and character.
Description
This composite side gate design brings together a solid dark woodgrain lower panel with an eye-catching arched wrought iron-style top, creating a gate that feels both private and decorative. The render shows a design built for side access points where security, privacy and visual detail all matter, finished with a central ornamental medallion that gives the gate a distinctive focal point.
Design Details of This Composite Side Gate
The defining feature of this composite side gate is the split design: a fully boarded dark woodgrain-effect lower section paired with an open, arched scrollwork upper section.
Lower Panel
- Vertical composite slats in a dark woodgrain finish for a natural timber look
- Solid boarding from the bottom rail up to shoulder height for privacy
- Quatrefoil metal medallion set centrally into the panel, framed by scrolled leaf-style ironwork in a contrasting silver-grey tone
Upper Section
- Arched top rail curving gently from post to post
- Vertical spear-top finials spaced evenly along the crown of the gate
- Interlacing S-scroll and spiral bar detailing beneath the finials, echoing traditional wrought iron patterns
Construction Shown in the Composite Side Gate Render
The frame of this composite side gate is depicted in a dark, powder-coated-style finish that outlines and supports the composite boards and decorative ironwork.
- Box-section style perimeter frame visible around the gate edges
- Hinge plates shown at the top and bottom of the hanging stile
- A side-mounted lock case and handle positioned at mid-height on the latch stile
Why Choose This Side Gate Style
Choosing this composite side gate design means combining the low-maintenance appeal of composite boarding with the ornamental character usually associated with traditional metalwork. The dark woodgrain slats offer a contemporary, understated backdrop, while the scrollwork arch and quatrefoil medallion add a decorative, bespoke feel suited to period or character properties. Available with nationwide UK delivery, this design suits homeowners looking for a side gate that balances a private, screened lower section with an open, ornamental crown.
Frequently Asked Questions
What materials are shown in this composite side gate design?
The render shows dark woodgrain-effect composite boards for the main panel, combined with metal framing and scrollwork detailing for the arched top section.
Does this composite side gate offer privacy?
Yes, the lower section is fully boarded with tightly spaced vertical composite slats, providing a solid, screened panel below the open decorative ironwork at the top.
Can this side gate design be fitted with a lock?
The design includes a side-mounted lock case and handle on the latch stile, as shown positioned at mid-height in the render.
Specifications
We are the only manufacturing brand who not only provide bespoke design and sizes but also the specifications for gates.
Our material, size of rails, frames, infill bars and article designs are depending upon the requirements of each gate so you can get the best results. The standard size for side frame section starts at 40mm x 40mm but some basic side or garden gates can be made using 20mm x 10mm,20mm x20mm etc. frames as well. The specifications for all the premium gates will be decided by us according to the design and size of gates, we will give you the best option so that the quality of gate will not be compromised.
| Specifications
GATES |
Frame Section | Top/Arch Section | Infill Bars | Privacy Sheet | Operating System | Gate Arts |
| Driveway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Side Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Garden Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Sliding Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Security Door | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Alleyway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| ¾ Split Driveway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| BiFold Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Railing | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | N/A | Depend upon railing selection |
How To Measure
- Take 3 measurements: Top, Middle and Bottom
- Use the smallest of widths as Total Gap Width
- This is all we need, leave the rest of fittings upon us.
Post & Hinges Guide
Any question please call Us on 02089116000 – we are happy to help.
