Scalloped Top Decorative Wrought Iron Driveway Gates UKMDG80
Scalloped wrought iron driveway gates with spear finials, a ring band and scrolled base detail. Hand-built in the UK with galvanised anti-rust protection and a powder-coated finish in undercoat or any RAL colour. Nationwide delivery, installation & automation. Free quote: 02089116000.
Description

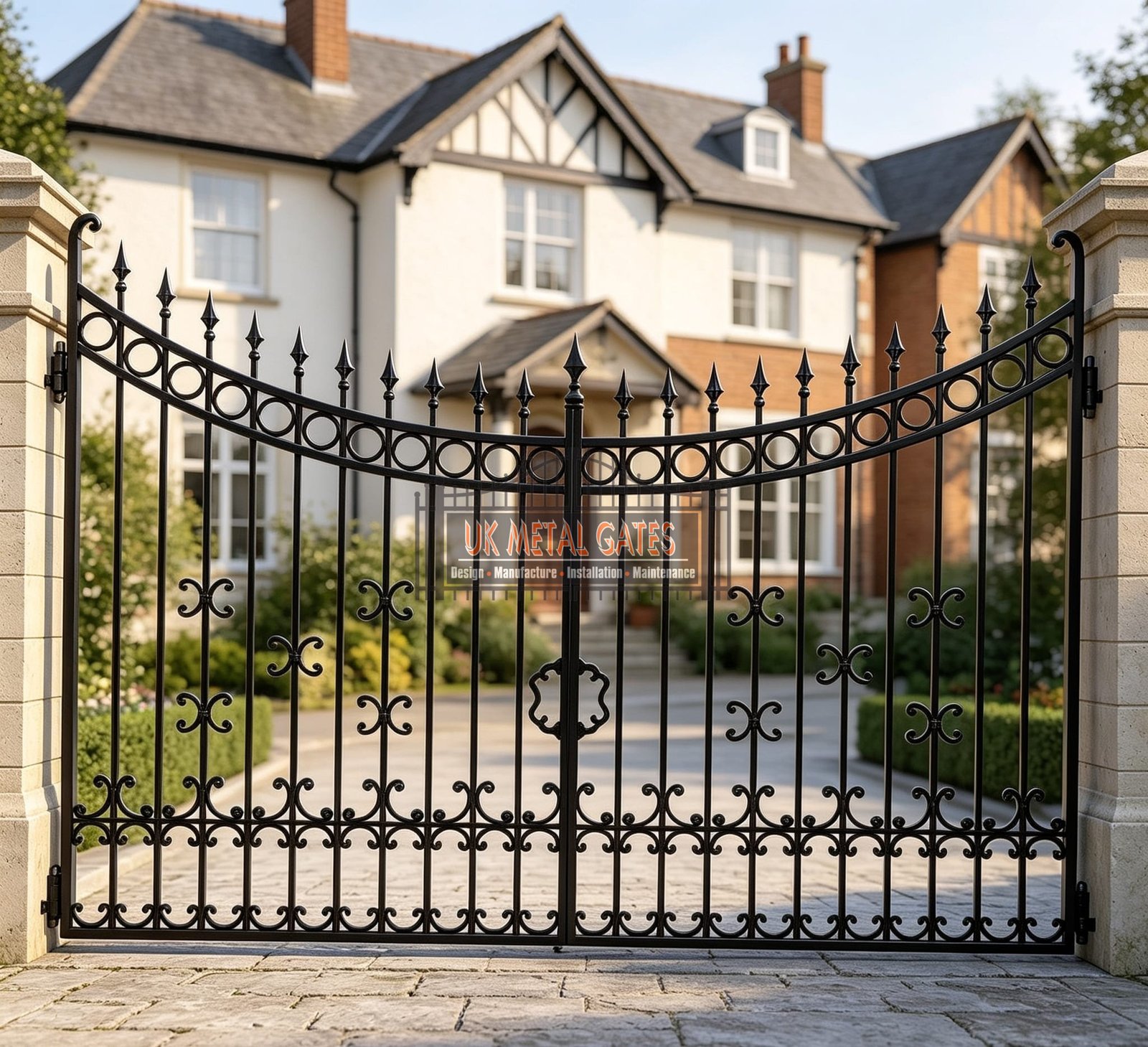

The UKMDG80 is a striking made-to-measure wrought iron driveway gate distinguished by its dramatic dipped, scalloped top. The bold sweep of the upper rail gives the design genuine character.
The deeply scalloped top, finished with spear finials and a band of decorative rings, curves gracefully across the pair, creating an eye-catching silhouette that sets the gate apart. The dipped top sweeps down between the finials, giving the gate a bold, distinctive outline.
Decorative scroll motifs climb the bars, and a continuous scrolled border runs across the base, while an ornamental rosette lock plate provides a refined focal point at the centre of the gate. The scroll motifs climb the bars to meet the dipped top, drawing the eye across the whole gate.
Crafted to your precise opening, the UKMDG80 suits period and country homes wanting a decorative wrought iron gate with a distinctive top profile. It flatters period and country homes wanting a decorative gate with a striking top profile. Its dramatic dipped crown gives the gate a silhouette that sets it apart.
Specifications
We are the only manufacturing brand who not only provide bespoke design and sizes but also the specifications for gates.
   Our material, size of rails, frames, infill bars and article designs are depending upon the requirements of each gate so you can get the best results. The standard size for side frame section starts at 40mm x 40mm but some basic side or garden gates can be made using 20mm x 10mm,20mm x20mm etc. frames as well. The specifications for all the premium gates will be decided by us according to the design and size of gates, we will give you the best option so that the quality of gate will not be compromised.
|
      Specifications  GATES |
Frame Section |
Top/Arch Section | Infill Bars | Privacy Sheet | Operating System | Gate Arts |
|
Driveway Gate |
40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Side Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Garden Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Sliding Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Security Door | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Alleyway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| ¾ Split Driveway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| BiFold Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Railing | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | N/A | Depend upon railing selection |
How To Measure
- Take 3 measurements: Top, Middle and Bottom
- Use the smallest of widths as Total Gap Width
- This is all we need, leave the rest of fittings upon us.
Post & Hinges Guide
Any question please call Us on 02089116000 – we are happy to help. Â
