Contemporary Arched Privacy Metal Driveway Gates UKMDG146
Contemporary arched privacy driveway gates with vertical battens, an open bar top and a matching pedestrian gate. Hand-built in the UK with galvanised anti-rust protection and a powder-coated finish in undercoat or any RAL colour. Nationwide delivery, installation & automation. Free quote: 02089116000.
Description

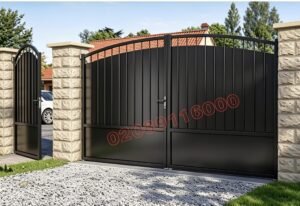

The UKMDG146 is a smart, contemporary made-to-measure metal driveway gate that combines privacy with a softly arched profile. It is a clean, modern design with a welcoming character.
The solid-backed lower section, finished with subtle vertical batten lines, provides excellent privacy, while a row of short vertical bars along the gently arched top keeps the design feeling open at the top. The arched top carries a row of short bars above the solid body, lightening the private design.
Shown here with a matching pedestrian gate, the design offers a coordinated entrance, while the curved top adds a soft, contemporary touch to the otherwise clean lines. The open bar top lightens the gate visually, so the private body never feels heavy.
Built to your precise opening, the UKMDG146 is ideal for modern homes wanting a private gate with a softly arched top and matching access. It is a stylish, practical choice for a modern home wanting privacy with a softly arched top. With its matching side gate, it makes a private, coordinated modern statement.
Specifications
We are the only manufacturing brand who not only provide bespoke design and sizes but also the specifications for gates.
Our material, size of rails, frames, infill bars and article designs are depending upon the requirements of each gate so you can get the best results. The standard size for side frame section starts at 40mm x 40mm but some basic side or garden gates can be made using 20mm x 10mm,20mm x20mm etc. frames as well. The specifications for all the premium gates will be decided by us according to the design and size of gates, we will give you the best option so that the quality of gate will not be compromised.
|
Specifications GATES |
Frame Section |
Top/Arch Section | Infill Bars | Privacy Sheet | Operating System | Gate Arts |
|
Driveway Gate |
40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Side Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Garden Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Sliding Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Security Door | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Alleyway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| ¾ Split Driveway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| BiFold Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Railing | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | N/A | Depend upon railing selection |
How To Measure
- Take 3 measurements: Top, Middle and Bottom
- Use the smallest of widths as Total Gap Width
- This is all we need, leave the rest of fittings upon us.
Post & Hinges Guide
Any question please call Us on 02089116000 – we are happy to help.
