Composite Side Gate | Side Gates | CSG16
Original price was: £419.95.£300.00Current price is: £300.00.+ Price depends upon Sizes
This composite side gate design combines a curved wrought iron top section with ring motifs and finial spikes above solid vertical wood-effect composite panelling. The dark metal frame and brown slatted infill give a striking blend of traditional ironwork detailing and low-maintenance composite construction.
Description

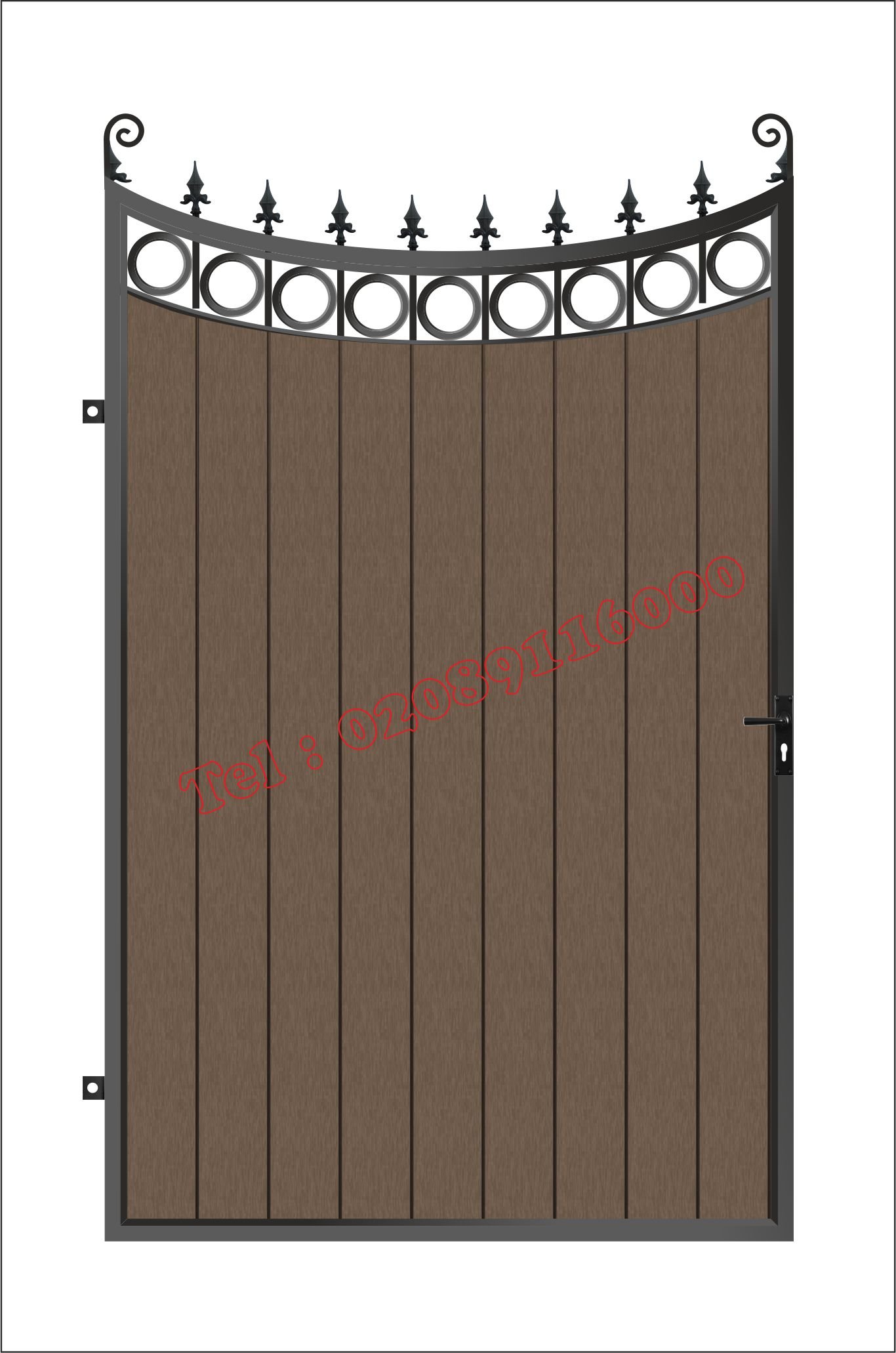

This composite side gate design pairs an ornamental wrought iron top section with a solid vertical wood-effect composite infill, creating a gate that looks as good from the street as it performs in daily use. The render shows a dark metal outer frame curving gently upward at the top, finished with decorative scrollwork, fleur-de-lys style finials and a row of open ring motifs set just below the arched top rail.
Composite Side Gate Design Features
The design of this composite side gate is built around a clear split between decorative ironwork above and privacy panelling below.
Ornamental Top Section
- Curved black metal top rail with scrolled corner details
- Fleur-de-lys style finial spikes spaced evenly across the arch
- A continuous row of circular ring motifs set beneath the curved rail
Composite Panel Body
- Vertical wood-effect composite boards fitted flush within the frame
- Warm brown timber-look finish shown across the full panel run
- Full-height coverage below the ironwork for privacy and security
Construction of This Composite Side Gate
The frame surrounding this composite side gate is shown in a dark powder-finished metal, providing a rigid outer structure for the composite infill boards.
Twin hinge points are visible on the left-hand upright, while a black lever handle with a lock plate sits on the opposite stile at working height, indicating a single-swing gate suited to pedestrian side access.
Why Consider This Composite Side Gate
Choosing this composite side gate design brings together the character of traditional wrought iron detailing with the clean, consistent look of composite boarding.
- Distinctive arched top with scrollwork and finials for kerb appeal
- Solid vertical infill for a private, screened side passage
- Dark metal frame that contrasts against the wood-effect panelling
Available with nationwide UK delivery, this design suits side returns and passageways where both style and screening are wanted.
Frequently Asked Questions
What is the top section of this composite side gate made from?
The arched top section shown in the render is formed from dark-finished metal, incorporating scrollwork, finial spikes and circular ring details above the main composite panel.
Is this composite side gate suitable for narrow side passages?
Yes, the single-swing layout with hinges on one side and a handle on the other is designed for pedestrian side access, making it well suited to side returns and garden entry points.
Does the composite side gate offer privacy?
The lower section is fitted with full-height vertical composite boards, giving a solid, screened finish that limits visibility through the gate.
Specifications
We are the only manufacturing brand who not only provide bespoke design and sizes but also the specifications for gates.
Our material, size of rails, frames, infill bars and article designs are depending upon the requirements of each gate so you can get the best results. The standard size for side frame section starts at 40mm x 40mm but some basic side or garden gates can be made using 20mm x 10mm,20mm x20mm etc. frames as well. The specifications for all the premium gates will be decided by us according to the design and size of gates, we will give you the best option so that the quality of gate will not be compromised.
| Specifications
GATES |
Frame Section | Top/Arch Section | Infill Bars | Privacy Sheet | Operating System | Gate Arts |
| Driveway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Side Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Garden Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Sliding Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Security Door | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Alleyway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| ¾ Split Driveway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| BiFold Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Railing | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | N/A | Depend upon railing selection |
How To Measure
- Take 3 measurements: Top, Middle and Bottom
- Use the smallest of widths as Total Gap Width
- This is all we need, leave the rest of fittings upon us.
Post & Hinges Guide
Any question please call Us on 02089116000 – we are happy to help.
