Ornate Wrought Iron Gates with Solid Decorative Base UKMDG57
Bell-curved wrought iron driveway gates with spear finials and a solid base with applied scrollwork. Hand-built in the UK with galvanised anti-rust protection and a powder-coated finish in undercoat or any RAL colour. Nationwide delivery, installation & automation. Free quote: 02089116000.
Description

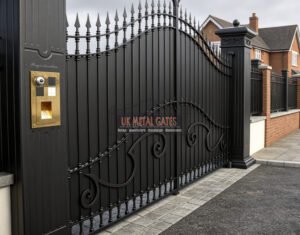

The UKMDG57 is a striking made-to-measure wrought iron driveway gate that combines an ornate bell-curved top with a solid lower section for privacy and impact. It is a bold, substantial design with real presence.
The undulating top rail is finished with spear finials, giving the upper portion a classic, defensive elegance, while slender bars maintain an open feel at eye level. The bell curve crowns the gate above the solid base, balancing openness with privacy.
The solid lower panel provides screening and weight, and is brought to life with flowing applied scrollwork that sweeps across the base, adding ornamentation and softening the solidity beautifully. The applied scrolls lift the solid panel, turning a private base into a decorative feature.
Built to your exact opening and shown here with an integrated entry panel, the UKMDG57 suits homes wanting a private, decorative gate with traditional detailing. It suits homes wanting a private, decorative gate with a substantial, traditional presence. For an entrance that should feel private yet decorative, it balances both beautifully.
Specifications
We are the only manufacturing brand who not only provide bespoke design and sizes but also the specifications for gates.
   Our material, size of rails, frames, infill bars and article designs are depending upon the requirements of each gate so you can get the best results. The standard size for side frame section starts at 40mm x 40mm but some basic side or garden gates can be made using 20mm x 10mm,20mm x20mm etc. frames as well. The specifications for all the premium gates will be decided by us according to the design and size of gates, we will give you the best option so that the quality of gate will not be compromised.
|
      Specifications  GATES |
Frame Section |
Top/Arch Section | Infill Bars | Privacy Sheet | Operating System | Gate Arts |
|
Driveway Gate |
40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Side Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Garden Gate | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Sliding Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Security Door | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Alleyway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| ¾ Split Driveway Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| BiFold Gate | 40mm X 40mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box ) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | Manual or Electric | Depend upon gate selection |
| Railing | 20mm X 20mm -100mm X 100 mm | 40mm X 8mm (Min Flat bar) or 40mm X 40mm(Box) | 12mm-20mm round bar, square bar(solid & hallow) | 1mm – 3mm thick | N/A | Depend upon railing selection |
How To Measure
- Take 3 measurements: Top, Middle and Bottom
- Use the smallest of widths as Total Gap Width
- This is all we need, leave the rest of fittings upon us.
Post & Hinges Guide
Any question please call Us on 02089116000 – we are happy to help. Â
